SSO & MFA Setup

If your Oracle EPM Cloud environment enforces single sign-on or multi-factor authentication, EPM Commander connects through OAuth 2.0 device code. Your identity domain administrator configures it once; after that each user signs in through your normal SSO or MFA screen and stays connected.

Administrator — once

Parts 1 to 3. Requires the Identity Domain Administrator role in the OCI Console. Roughly fifteen minutes.

Each user — once

Part 4. Paste two values, complete the usual SSO or MFA challenge. Under a minute.

Why OAuth, and not a browser sign-in

EPM Commander reads and writes through Oracle's documented REST APIs (/HyperionPlanning/rest/…, /interop/rest/…). Oracle states that REST APIs cannot be used with basic authentication by users who have MFA enabled, and that OAuth 2.0 is the supported alternative.

A signed-in browser session is not an alternative. On an SSO-protected pod, Oracle Cloud Gate refuses browser session cookies on the REST paths even when the user is fully signed in to the EPM web application in that same browser:

HTTP 401
WWW-Authenticate: Bearer error="invalid_session",
                  error_description="Authentication Failure"

This is why EPM Commander offers no “sign in with your browser” option for SSO environments. The device code flow still puts your own identity provider in charge of the sign-in — the same SSO page, the same MFA prompt, the same policies — it simply ends with a token the REST APIs accept.

Part 1 — Create the application

In the OCI Console, as an Identity Domain Administrator.

Open Identity & Security → Domains and select the domain your EPM environment uses. Copy the Domain URL from the overview — users will need it, and it looks like https://idcs-<guid>.identity.oraclecloud.com.
Go to Integrated applications → Add application and choose Mobile Application. That is Oracle's name for a public client — one with no client secret, which is what a desktop add-in must be.
Name it something recognisable, such as Captain EPM, and continue.
Under Allowed grant types, tick Device code and Refresh token. Leave Implicit unticked — Oracle requires it to be off for this configuration.
Enable Add app roles, click Add roles, and add Identity Domain Administrator. Oracle's procedure lists this as required.
In the Resources section, add the EPM Cloud service for this environment and grant the scope ending :consumer::all.
Save, then Activate the application. An application left inactive fails sign-in with invalid_client.

Screenshot to be addedAdd application — choose Mobile Application. Confidential Application is for server-side apps that can keep a client secret; a desktop add-in cannot.save as public/docs/oauth/add-application.png

Screenshot to be addedAllowed grant types: Refresh token and Device code ticked, Authorization code and Implicit left unticked.save as public/docs/oauth/grant-types.png

Screenshot to be addedToken issuance policy — Add resources must be ON to attach the EPM service, and Add app roles ON to reach the App roles list.save as public/docs/oauth/token-issuance-toggles.png

Screenshot to be addedAdd app roles with Identity Domain Administrator ticked.save as public/docs/oauth/add-app-roles.png

Screenshot to be addedA newly created application is Inactive. Activate it from the row menu — an inactive application fails sign-in with invalid_client, which reads like a wrong Client ID.save as public/docs/oauth/activate-application.png

Use a dedicated application. Turning Implicit off changes behaviour for anything else already relying on a shared application. Create a new one rather than editing an existing integration.

Part 2 — Configure the EPM Cloud service

This is the step that is most often missed. It lives on a different tab from everything in Part 1, and skipping it produces a sign-in that succeeds followed by an EPM connection that fails — which looks like a credential problem but is not one.

Still inside the identity domain, open the Oracle cloud services tab. This is not the Integrated applications tab you just used.
Open the EPM service for this environment. It is named after the pod, for example Planning_<pod-name>. Test and production are separate entries.
Go to OAuth configuration → Edit OAuth configuration.
Enable Add secondary audience, then add this environment's base URL to the list below the toggle, with no trailing slash and no context path:
```
https://<pod>-<domain>.epm.<region>.ocs.oraclecloud.com
```
Enable Allow token refresh. This is what lets users stay connected without a fresh MFA challenge every hour.
Click Submit, and confirm the URL is still listed when the page reloads.

Screenshot to be addedThe Oracle cloud services tab, showing it is a separate tab from Integrated applications.save as public/docs/oauth/cloud-services-tab.png

Screenshot to be addedEdit OAuth configuration with Add secondary audience enabled and the environment base URL visible in the list beneath it, plus Allow token refresh enabled.save as public/docs/oauth/secondary-audience.png

Before publishing this image, blank out: nothing — this page holds no secrets, but crop to the pod you are documenting

Turning the toggle on is not enough. The URL itself must appear in the list and survive a save. A configuration with the toggle enabled and an empty list behaves exactly as though the whole step had been skipped, and is easy to mistake for done.

Repeat Part 2 for every environment. Test and production are separate services with separate identifiers, and a token minted for one is never valid for the other.

Part 3 — Collect the values for users

Send your users these four values. None of them is a secret: a device code client has no client secret by design, and all four are displayed openly in the console.

Value	Where to find it
EPM URL	The environment's base URL, as used in a browser.
Identity domain URL	Domain overview, from Part 1 step 1. EPM Commander can often detect this automatically.
Client ID	The application's OAuth configuration tab. Not the “Application ID” on the Details tab — they are different values and only the Client ID works.
Service Instance ID	The Resources table of the same tab. The scope reads `urn:opc:serviceInstanceID=<digits>urn:opc:resource:consumer::all`; EPM Commander accepts the whole string or just the digits.

Screenshot to be addedThe OAuth configuration tab. The Client ID is here, along with confirmation that Client type is Public and Device code and Refresh token are Enabled.save as public/docs/oauth/oauth-configuration.png

Before publishing this image, blank out: the Client ID, if this image will be public

Screenshot to be addedThe Details tab shows an Application ID. This is NOT the Client ID and will not work — the two are easy to confuse because both are long hex strings.save as public/docs/oauth/details-application-id.png

Before publishing this image, blank out: the Application ID, if this image will be public

Screenshot to be addedResources table showing the EPM service and the full scope string that contains the Service Instance ID.save as public/docs/oauth/resources-table.png

Part 4 — Connect from Excel

In the EPM Commander ribbon, open EPM Connections and select or create the environment.
Choose Sign in with OAuth.
Paste the Client ID and Service Instance ID from Part 3. Both are remembered per environment, so this is a one-time step.
Click Authenticate with Device Code. A short code appears and your browser opens Oracle's sign-in page.
Complete your organisation's normal sign-in there — SSO redirect, MFA push, passcode, or security key, whatever your policy requires.
Return to Excel. The connection completes on its own, and the ribbon unlocks the groups that match the detected application type.

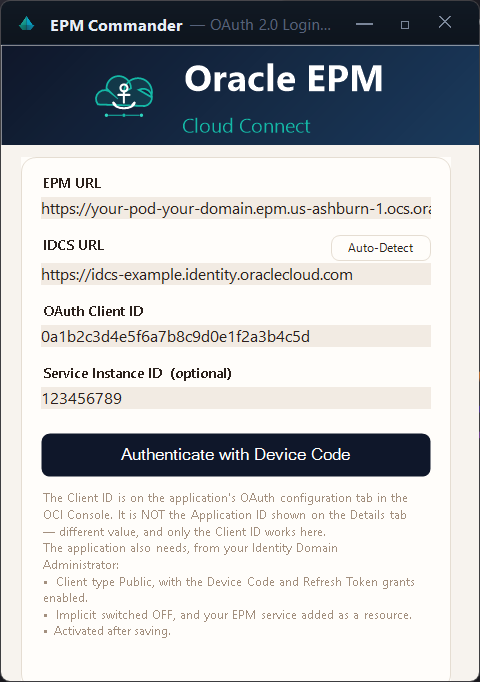

The OAuth sign-in dialog. The EPM URL and identity domain are filled in from the connection; paste the Client ID and Service Instance ID your administrator supplied.

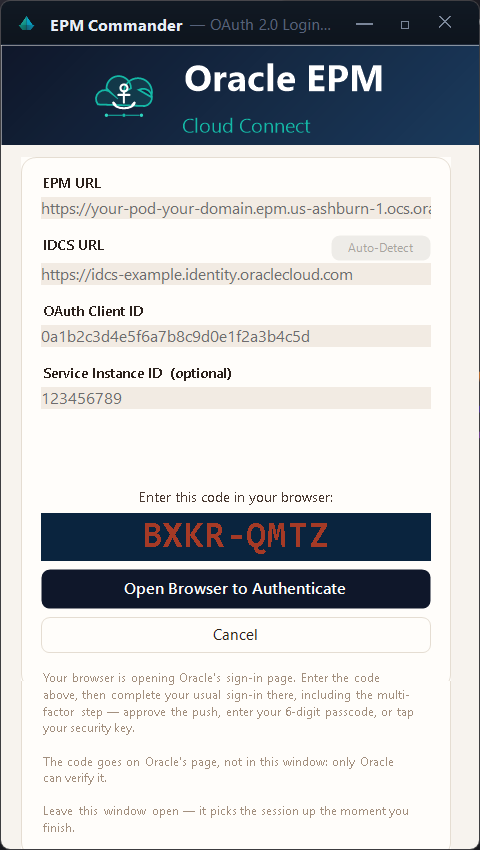

The device code, shown while EPM Commander waits for the browser sign-in to finish. Leave this window open — it picks the session up the moment you complete the challenge.

Screenshot to be addedOracle's device sign-in page with the MFA challenge.save as public/docs/oauth/oracle-device-signin.png

Before publishing this image, blank out: the user name, and the device code if the image will be public

Where does my 6-digit passcode go? On Oracle's page, not in Excel. EPM Commander deliberately has no field for it: only your identity provider can verify a passcode, push, or security key, so anything typed into the add-in could not be checked. The code EPM Commander shows is the opposite direction — it identifies this Excel session to Oracle.

Staying signed in

After the first sign-in, EPM Commander reconnects on its own using a refresh token, so reopening Excel does not mean another MFA challenge. Choosing Sign Out discards that stored sign-in along with the browser session, so the next connection challenges again from scratch.

If it does not connect

Every attempt is recorded in %LocalAppData%\CaptainEPM\CaptainEPM_debug.log. The log names the failure rather than leaving you to guess: look for the token claims: line and any WWW-Authenticate: line.

What the log says	What to change
`error_description="Token Audience"`	Part 2. The environment's base URL is not in the secondary audience list. Confirm it with the `token claims:` line — if `aud=` does not contain the base URL, the value was never saved.
`invalid_client`	Client ID not recognised: wrong value, wrong domain, or the application was never activated. Check it is the Client ID and not the Application ID.
`invalid_grant`	The application may not use the Device code grant. Part 1, step 4.
`unauthorized_client`	The grant is allowed but the scope is not. Add the EPM resource (Part 1, step 6) and supply the Service Instance ID. Domains set to Authorized resources: Explicit refuse a generic scope.
`invalid_scope`	The EPM resource is not attached to the application at all.
`invalid_session`	A browser cookie session reached a REST path. Expected on an SSO pod — use OAuth, as described at the top of this page.

One case is worth calling out because it looks alarming and is not: if sign-in clearly succeeds and EPM then answers 401, the credentials are fine. A token was issued; the service simply does not accept it yet. That is Part 2 almost every time.

When the audience is the problem, EPM Commander says so directly and fills in your own environment URL:

Error 401: The sign-in worked. This environment is not listed in the
token's audience.

Oracle rejected the token with "Token Audience", which means one specific
setting: the EPM service has not been told to accept tokens for this URL.

  1. Enable Add secondary audience.
  2. Add exactly this value, with no trailing slash or path:
     https://<your-pod>.epm.<region>.ocs.oraclecloud.com
  3. Enable Allow token refresh, then Submit.

Switching the toggle on is not enough on its own - the URL has to be in
the list and saved.

A configuration change on Oracle's side reaches an already signed-in user without any action from them. EPM Commander notices the rejection, refreshes the token, and picks up the corrected settings — so after fixing Part 2 there is no need to have everyone sign in again.

What is stored, and where

Your password is never seen by EPM Commander. You type it into your own identity provider's page, in your own browser.
Tokens stay on your workstation, encrypted with Windows DPAPI under your own account, and are stored per environment so a test token can never reach production.
Your policies still apply. Session lifetime, MFA rules, and network perimeter restrictions are enforced by the identity domain exactly as they are for the web application. Revoking access there revokes it here.
Nothing is logged that could be replayed. The diagnostic log records a token's audience and expiry, never the token.

Oracle's own reference for this flow: REST API authentication with OAuth 2. The same guide is available inside the add-in at Help → Connection and OAuth Setup.
